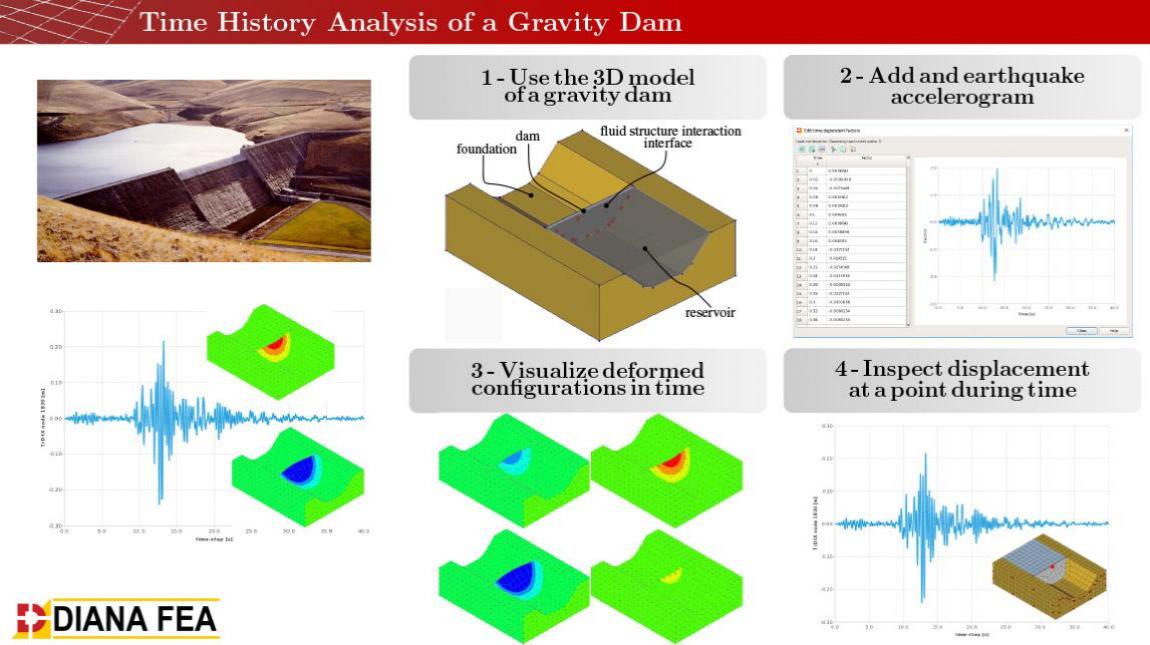

TUTORIAL TYPE	Technical - Dynamic
SUITABLE FOR TRIAL VERSION	Yes
FOR DIANA VERSION	10.2
MODULES REQUIRED	BASIC, EXPERT, ADV. DYNAMICS
DIMENSION	Three dimensional
ANALYSIS TYPE	Phased, Structural nonlinear
MODEL TYPE	Linear elasticity, 3D flow elements, Fluid-structure interface, Transient effects, Rayleigh damping
LOAD & BOUNDARY CONDITIONS	Self-weight load, Hydrostatic pressure, Constraint, Base excitation load, Load combination
RESULTS	Displacements contour plot, Chartview
