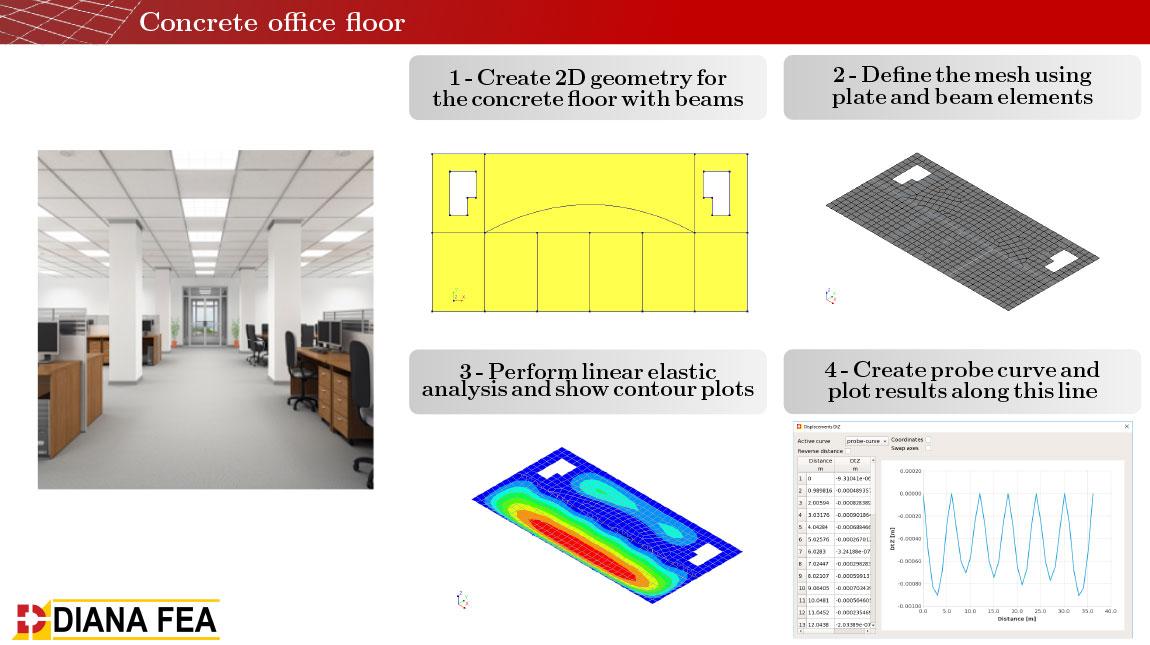

- Concrete office floor
- 구분 : DIANA 날짜 : 2019-01-04
- 조회수 : 1812
-
TUTORIAL TYPE Getting Started SUITABLE FOR TRIAL VERSION Yes FOR DIANA VERSION 10.2 MODULES REQUIRED BASIC DIMENSION Three dimensional ANALYSIS TYPE Structural linear static MODEL TYPE Linear elasticity, Plate bending elements, 3D Class-I beam elements LOAD & BOUNDARY CONDITIONS Self-weight load, Distributed force load, Constraint, Load combination RESULTS Deformation contour plot, Chart view
- 첨부파일 2018-Tutorial-Concrete-office-floor.pdf
